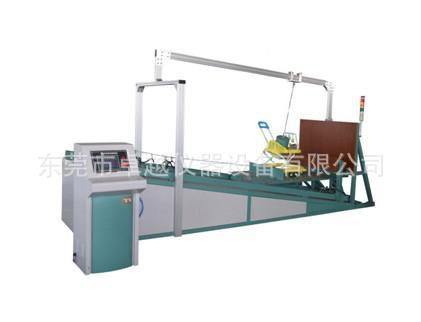

A.It is used to measure the device of children's stroller and baby walker hitting the steel body with 2m/s under certain binding load to check the tested object.
2.Test principle: conform to standard: gb14748-93 4.5.1 4.5.2 GB 14747-934.7 5.10
3.Technical parameters:
Model: Ф = 200 + / - 0.5 mm, H = 300 + / - 0.5 mm, G = 15 + / - 0.04 kg (cart)
Model: Ф = 160 + / - 0.5 mm, H = 280 + / - 0.5 mm, G = 12 + / - 0.04 kg (walker)
Impact velocity: 2m/s±0.2m/s
Step height: 200±1mm(cart)
Rigid wall: thickness 20±0.5mm(baby walker)
Stroller placement platform: 1000mm (L) ×1000mm (W)
