Product description:

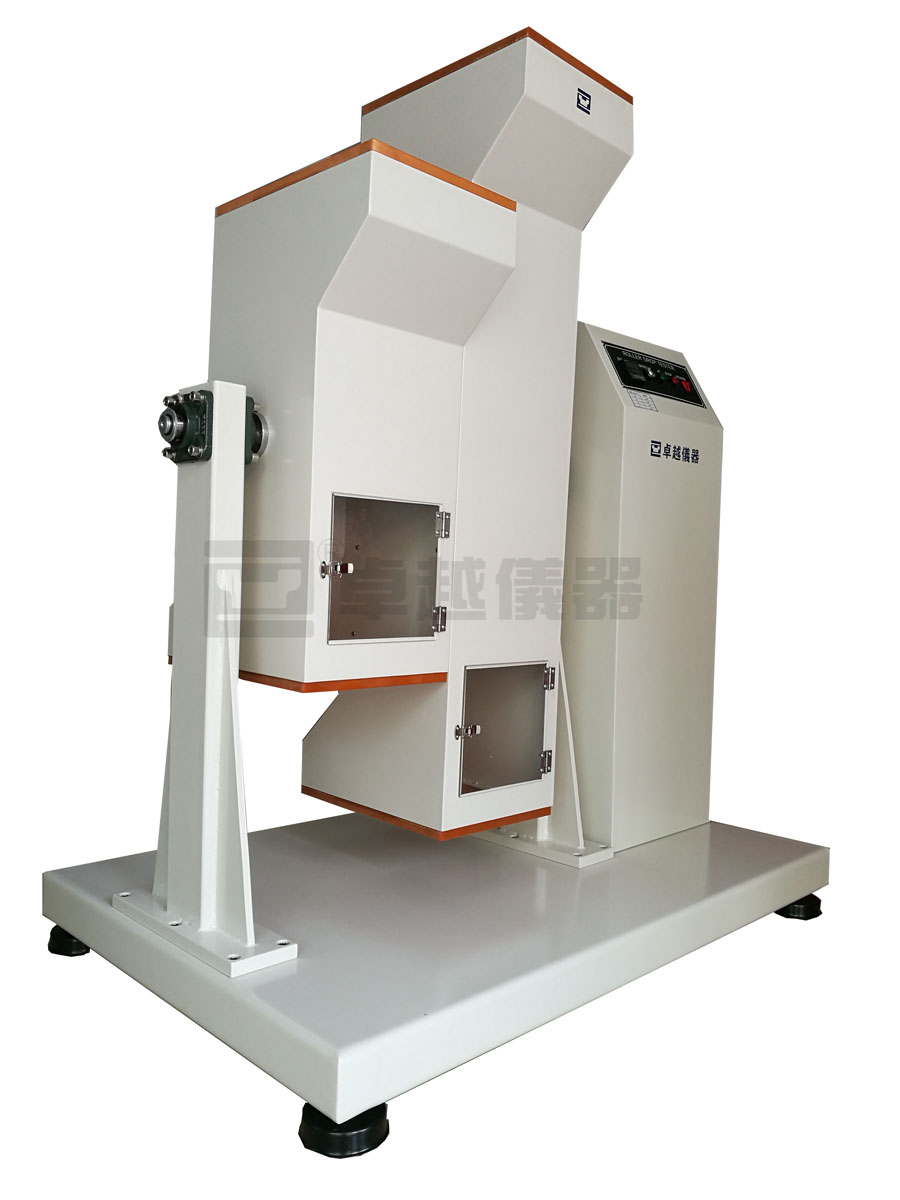

Roller drop testing machine is suitable for the plug sockets, plugs and without grounding contact fixed or movable socket, bluetooth headset, wireless, mobile phone, battery, mobile power, mobile phone, CD, electronic consumer products such as electronic dictionary, chargers, calculator repeat free fall strength test and used in the assessment of electrical accessories drop resistance.This machine takes small electrical products or connectors, plugs (including 100mm of power cord at the back end) as test pieces and puts them into the roller. According to the rolling number of test pieces set by the weight, the test pieces are continuously hit, and then the damage degree of test pieces is checked.The machine conforms to the test standards of gb-t2423.8 environment test for electrical and electronic products, part ii test methods: Ed free fall, gb2099-2008, iec60068-2-32, IEC60884.1, EN50075, etc.
Product parameters:
* number of drums: two drums
* drop height: 500mm and 1000mm, respectively
Height of * drum: 675mm / 1175mm
Maximum weight allowed: 5kg
* material of the roller: as 1.5mm steel plate, each end is 3mm steel plate, with 10-19mm thick plank on the back of the bottom
* a nappy-free rubber wedge of 80HD + / -20irhd as specified in ISO48:1979, "hardness test of vulcanized rubber (30IRHD~85IRHD)"
* the sliding surfaces of the bulkhead are made of smooth, hard plastic sheets
* rotating speed: 3~20 times/min (adjustable knob, LCD display)
* test times counter: 0~999999 times (preset, power off memory function)
* working power: AC220V, 50HZ
